Coating Equipment

Contract Coating Equipment

Our facility is equipped with eight coating machines: seven roll-to-roll coaters and one sheet coater. The roll-to-roll coating machines offer MICROGRAVURE™, slot die, and/or knife coating. All of our large scale coaters have a zone of counterflow dryer followed by air impingement dryer with parallel air flow to protect the most delicate coating surface. Our contract coating machines are meticulously maintained by a team of experienced Japanese engineers.

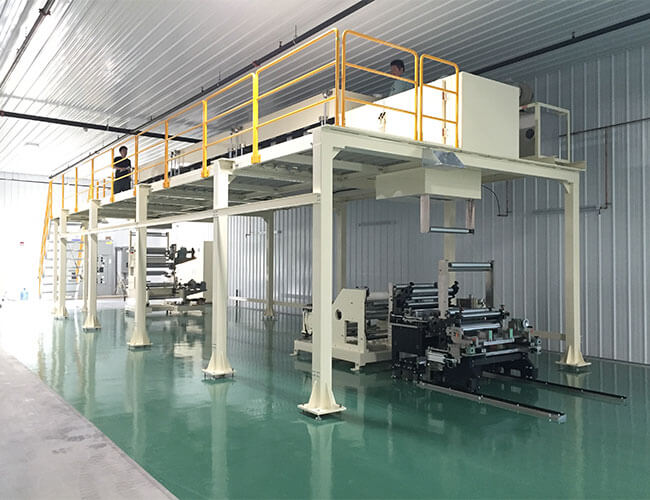

IS-700
Mirwec is700 main

IS-700

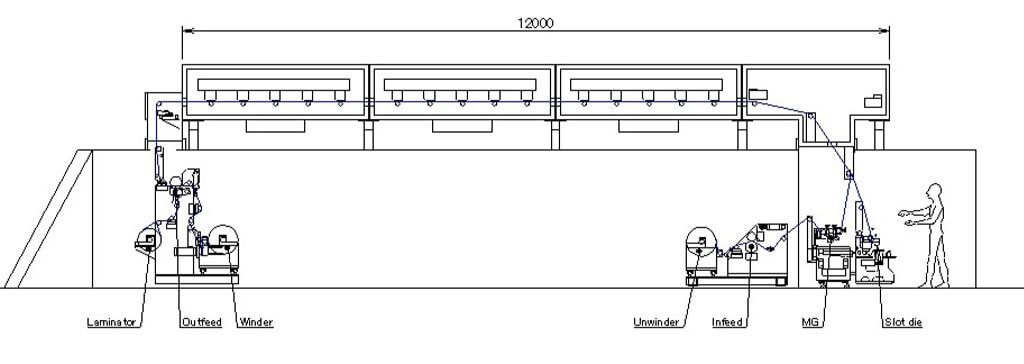

IS-700 is our newest production scale coating machine installed in October 2016. It is equipped with the latest generation of MICROGRAVURE™ coating head, slot die coating head, dry laminator, corona treater and LED UV cure system encased in a strictly Class 1000 cleanroom. The 12 meter long, driven roll-supported hot air dryer comes with a new clamshell feature, which allows easier access for thorough cleaning to eliminate cross contamination.

IS-700 Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width700 mm (27.5″)
Max. Web Width740 mm (29″)
Dryer150°C (302°F), 12 m (39′) dryer (3 zones of driven roll-supported hot air dryer and 1 zone of counterflow dryer)
Line SpeedUp to 50 mpm (164 fpm)
Corona TreaterYes
LED UVYes, with nitrogen purge
Dry LaminatorYes
Clean RoomClass 1000

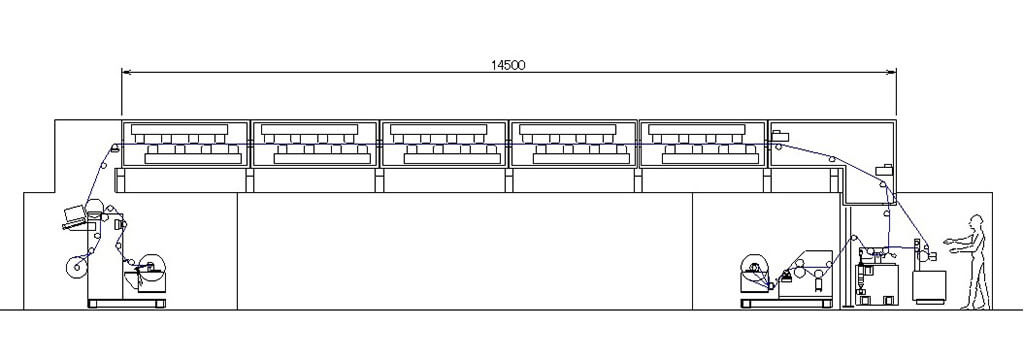

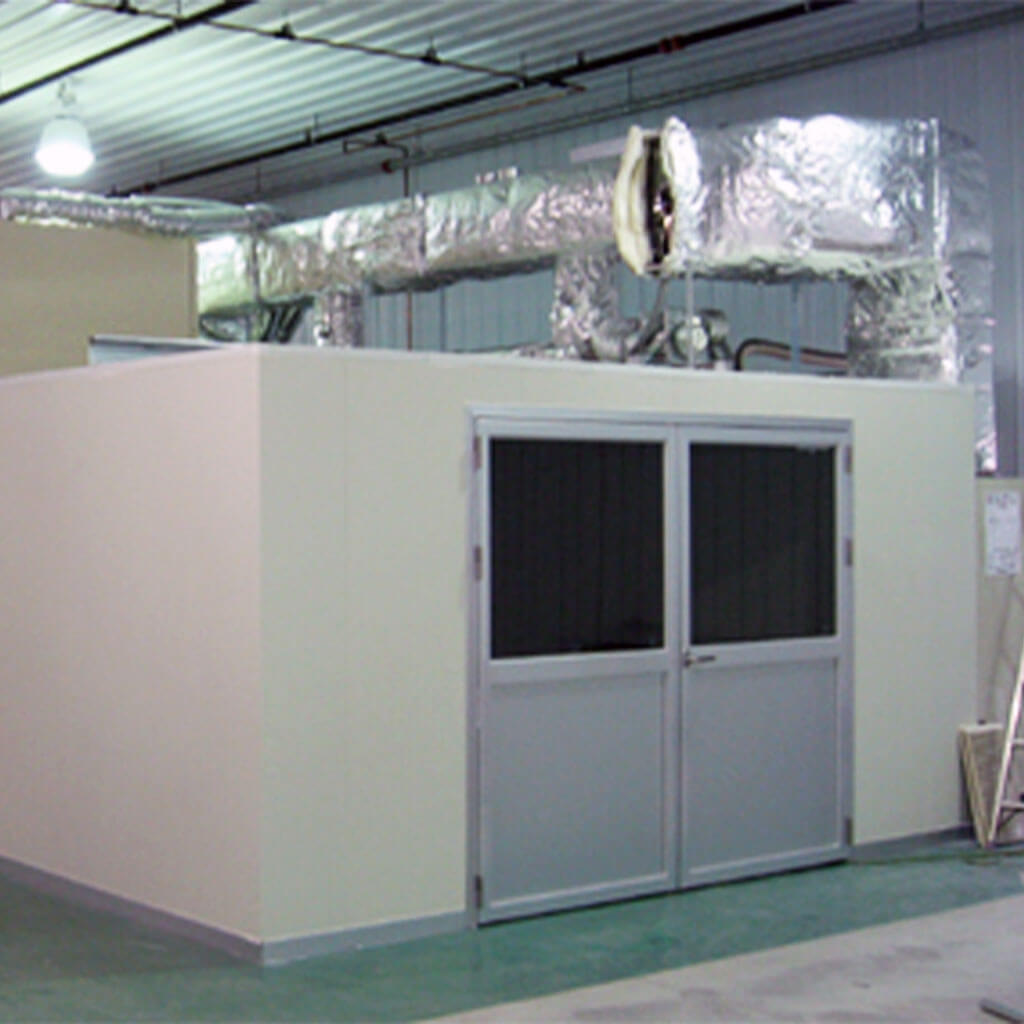

IS-1600
Mirwec is600 main

IS-1600

IS-1600 is our largest and longest coater. It is equipped with corona treater, UV cure, dry laminator and interleaf peeler. IS-1600 is capable of coating up to 1600 mm (63″) wide with MICROGRAVURE™ and up to 1000 mm (39″) wide with slot die coating. IS-1600 is suitable for making small- to large-scale market samples or for production.

IS-1600 Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width1600 mm (63″) (1000 mm (39″) with slot die)
Max. Web Width1600 mm (63″) (1200 mm (47″) with slot die)
Dryer160°C (320°F), 15 m (49′) dryer (5 zones of floating dryer and 1 zone of counterflow dryer)
Line SpeedUp to 50 mpm (164 fpm)
Corona TreaterYes
UV CureYes
Interleaf PeelerYes
Dry LaminatorYes
Clean RoomClass 3000
SG-700
Mirwec sg700 main

SG-700

SG-700 is capable of coating up to 740 mm (29″) with both MICROGRAVURE™ and slot die. It is also equipped with corona, dry laminator, and interleaf peeler. SG-700 is the most useful machine to make marketing samples with a smaller quantity coating solution or to study scale-up possibility based on new products developed on pilot scale test coaters.

SG-700 Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width740 mm (29″)
Max. Web Width740 mm (29″)
Dryer150°C (302°F), 10 m (33′) dryer (4 zones of floating dryer with 1 zone of counterflow dryer)
Line SpeedUp to 25 mpm (82 fpm)
Corona TreaterYes
Dry LaminatorYes
Clean RoomClass 3000
μCoater™ 650
Mirwec coater650 main

μCoater™ 650

μCoater™ 650 is our newest coating machine installed in November 2017. It is a compact smart pilot coater with PLC, and has MICROGRAVURE™ and slot die coating heads. It is quick to set up and easy to clean up. Perfect for making thin, but wide web market samples and low volume production.

μCOATER™ 650 COATING MACHINE

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width600 mm (24″)
Max. Web Width640 mm (25.2″)
Dryer130°C (266°F), 1.5 m (5′) long counterflow dryer
Line Speed0.5 to 5 mpm (1.6 to 16.5 fpm)
Dry LaminatorYes
UV Cure300 WPI mercury & metal halide lamps

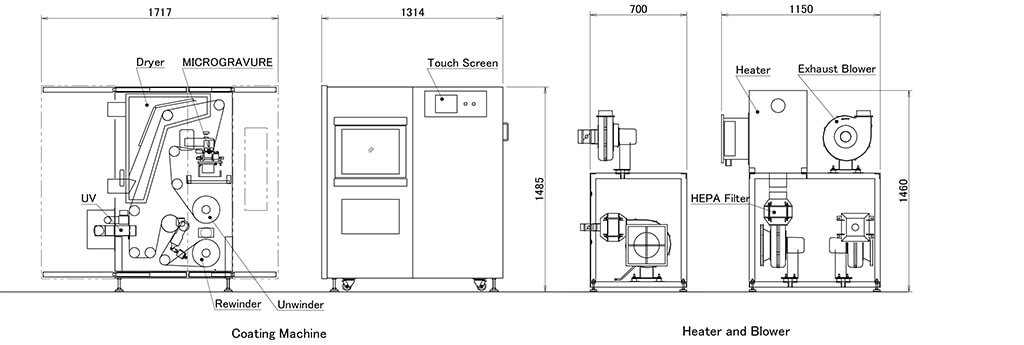

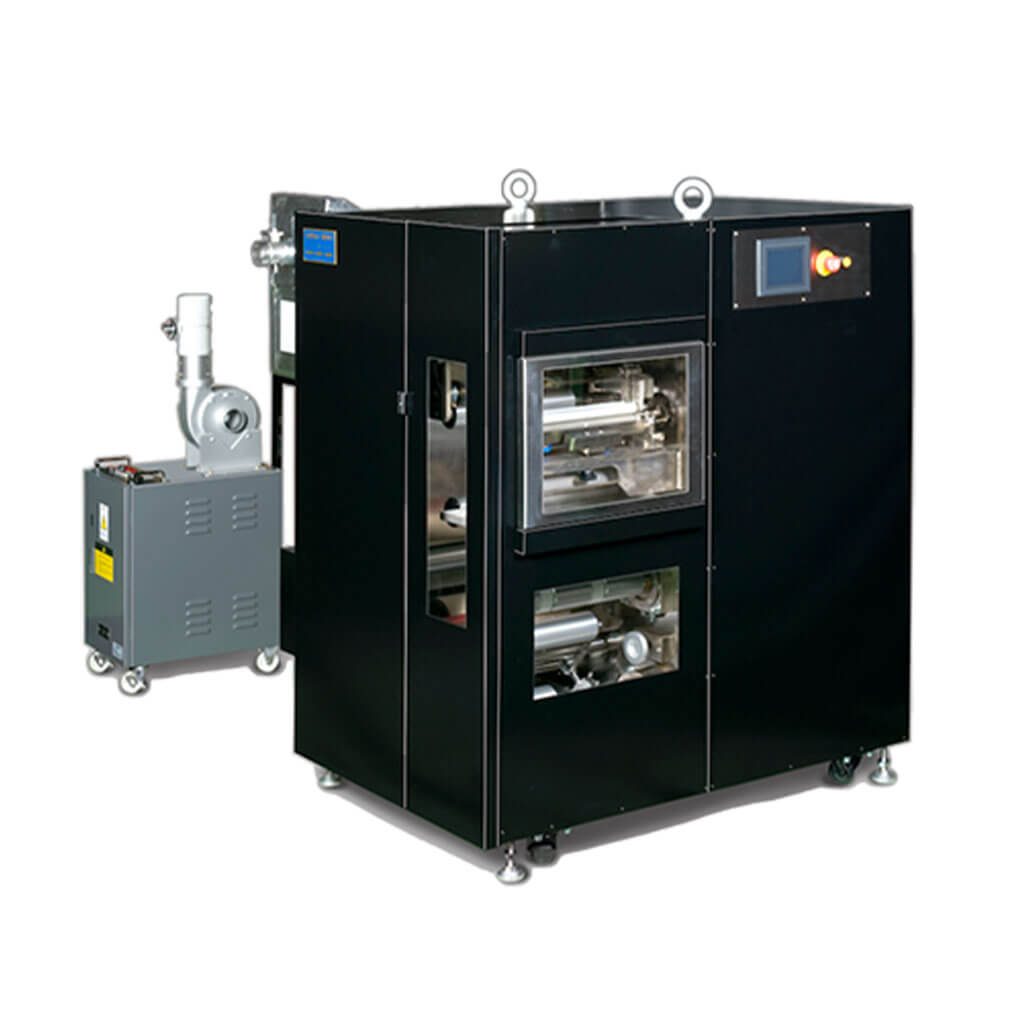

μCoater™ 350
Mirwec mu350 main

μCoater™ 350

μCoater™ 350 is a small and compact smart pilot coater with PLC. It is quick to set up and easy to clean up. Perfect for making narrow web market samples and low volume production.

μCOATER™ 350 COATING MACHINE

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width300 mm (12″)
Max. Web Width340 mm (13.4″)
Dryer130°C (266°F), 1 m (3.3′) long counterflow dryer
Line Speed0.5 to 5 mpm (1.6 to 16.5 fpm)
UV Cure300 WPI mercury & metal halide lamps

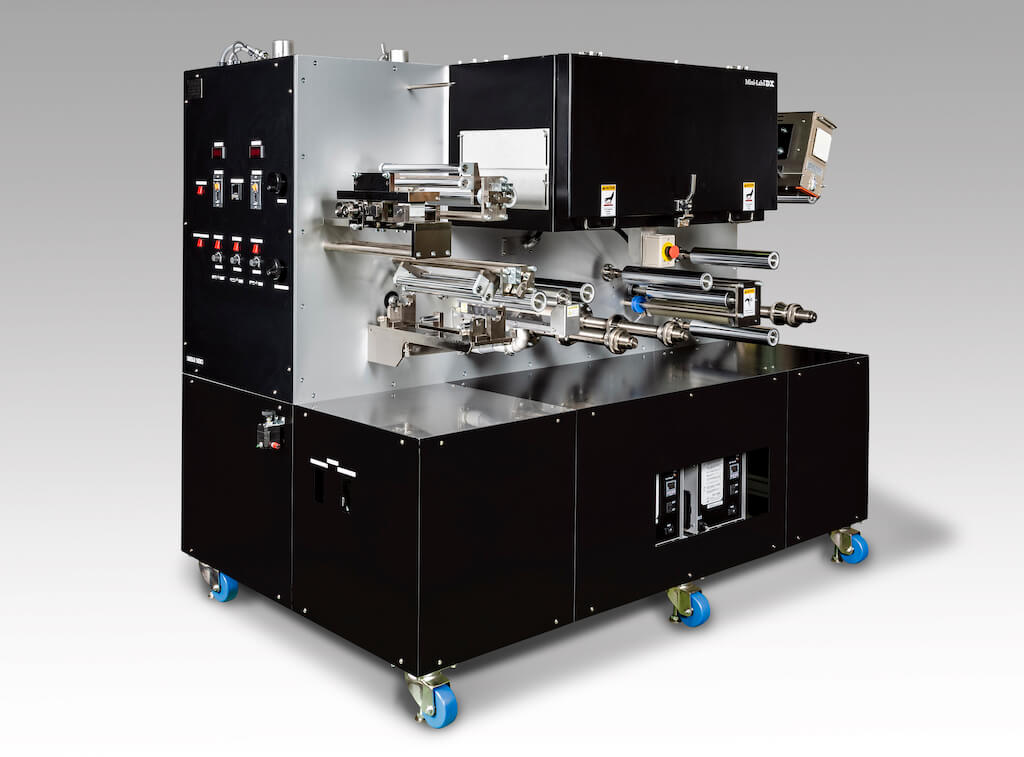

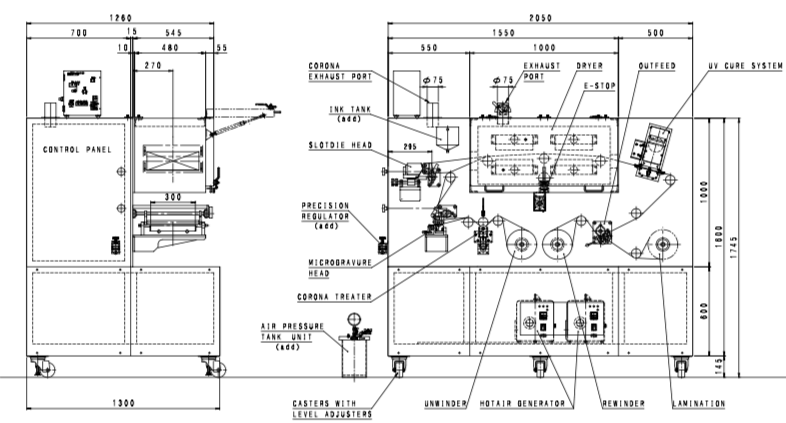

Mini-Labo™ Deluxe RL350
mini labo deluxe rl350 uv corona

Mini-Labo™ Deluxe RL350

This is the wider version of Mini-Labo™ Deluxe RL150 equipped with MICROGRAVURE™ and slot die coating heads as well as many other options (corona treater, UV, dry laminator). Perfect for low volume, roll-to-roll feasibility tests that require corona treatment and/or UV cure.

Mini-Labo™ Deluxe RL350 Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width320 mm (12.6″”)
Max. Web Width330 mm (13″)
Dryer160°C (320°F), 1 m (3.3′) long hot air dryer
Line Speed0.2 to 2 mpm (0.65 to 6.5 fpm)
Corona TreaterYes
UV CureYes
Dry LaminatorYes
Mini-Labo™ Deluxe RL150
Mirwec mld main

Mini-Labo™ Deluxe RL150

This is the pilot coater widely used by many leading research centers and universities such as NREL, Purdue University and University of British Columbia. It has 120 mm (4.7″) wide MICROGRAVURE™ and slot die coating heads and 1-meter dryer. Perfect for low volume, roll-to-roll feasibility tests.

Mini-Labo™ Deluxe RL150 Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width120 mm (4.7″)
Max. Web Width130 mm (5.5″)
Dryer160°C (320°F), 1 m (3.3′) long hot air dryer
Line Speed0.2 to 2 mpm (0.65 to 6.5 fpm)

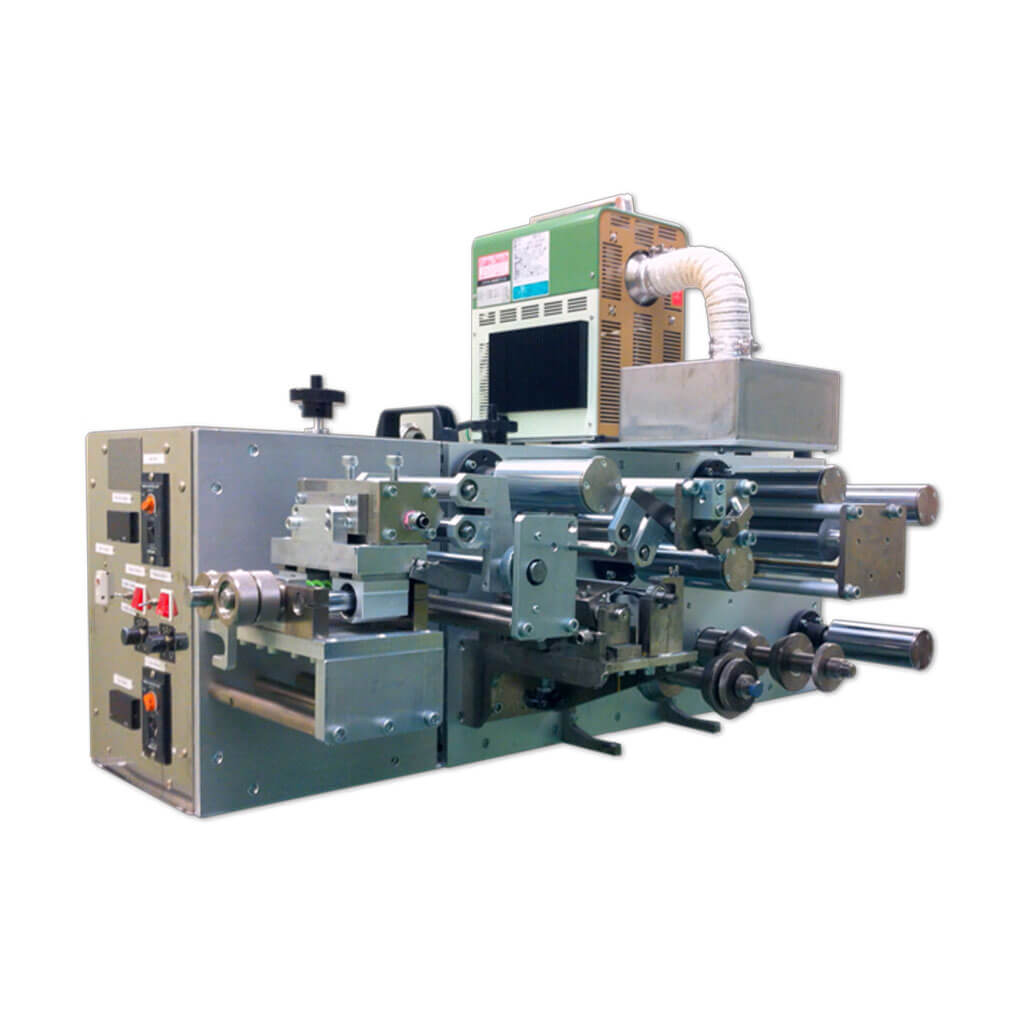

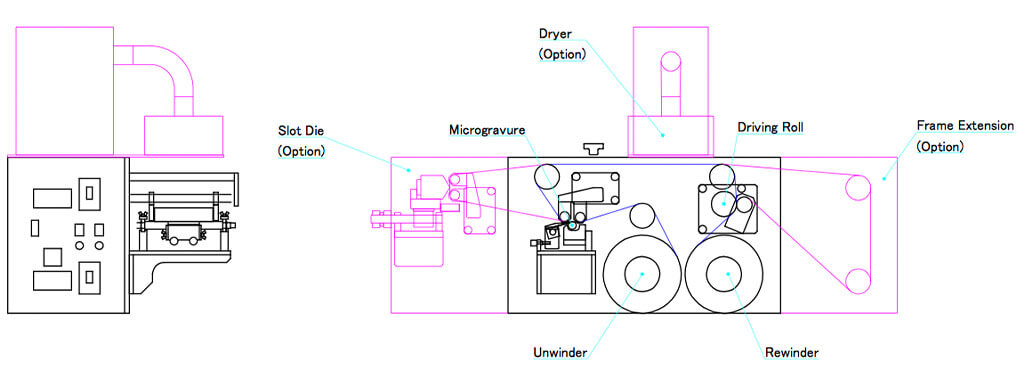

Mini-Labo™
Mirwec ml main

Mini-Labo™

Our smallest MICROGRAVURE™ and slot die R2R coater. This convenient tabletop model is perfect for extremely low volume (as little as 50 mL) feasibility testing.

Mini-Labo™ Coating machine

Coating MethodsMICROGRAVURE™, slot die
Max. Coating Width120 mm (4.7″)
Max. Web Width130 mm (5.5″)
Dryer160°C (320°F), 0.2 m (8″) hot air dryer
Line Speed0.2 to 2 mpm (0.65 to 6.5 fpm)

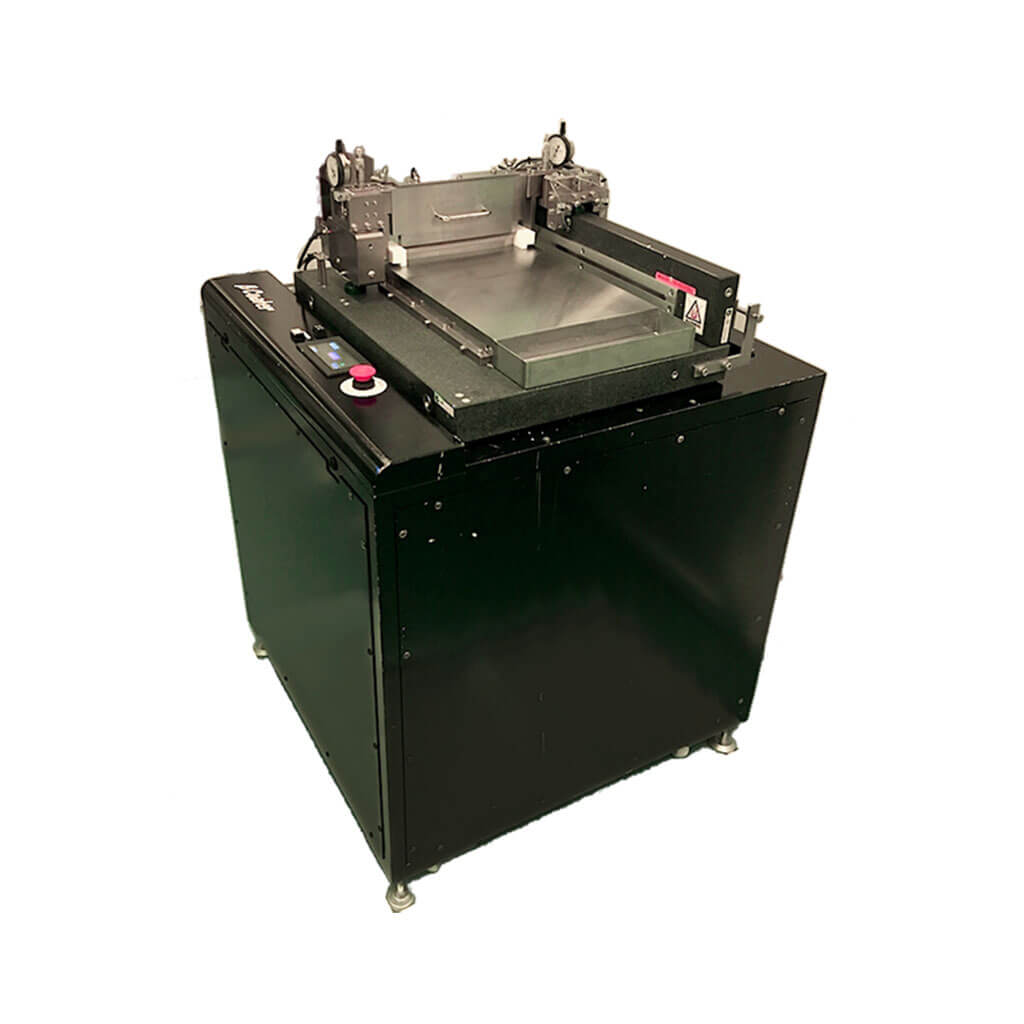

βCoater™
Mirwec bcoater main

βCoater™

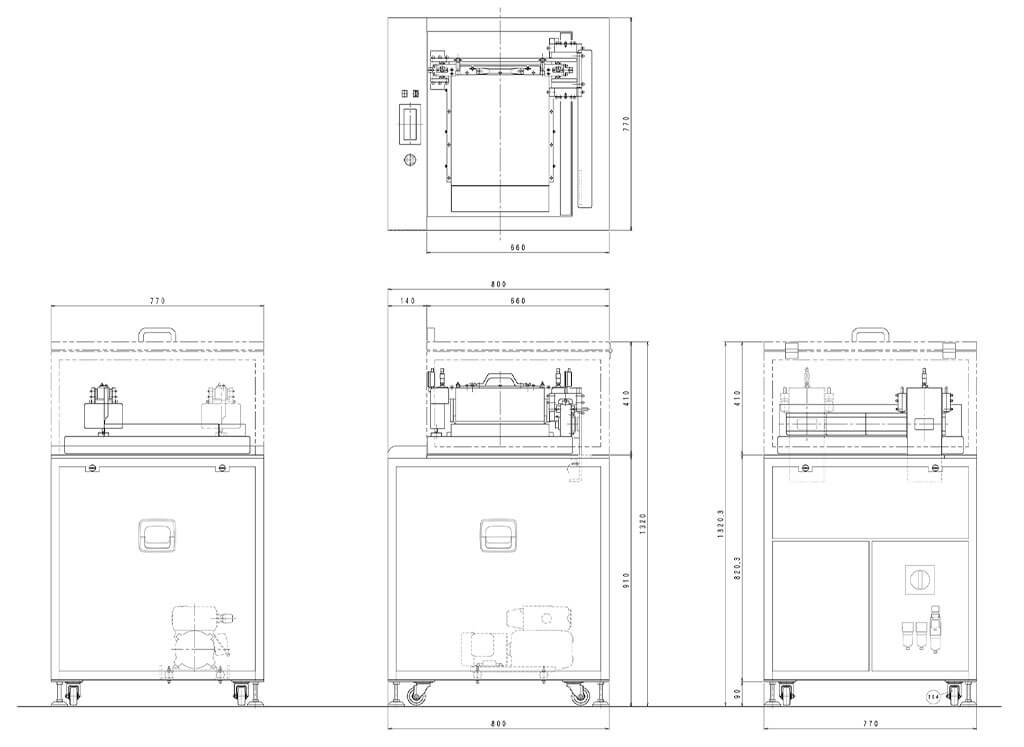

βCoater™ is a variable gap knife coater for both flexible and rigid substrates. It is easy to set up and coats quickly. The precision linear servomotors move the blade extremely smoothly, and the 4.5″ thick granite plate uses a suction method to hold the substrate perfectly in place and level.

βCOATER™ COATING MACHINE

Coating MethodsKnife-over-plate
Max. Coating Width315 mm (12.4″) x 400 mm (15.7″)
Max. Web Width315 mm (12.4″) x 400 mm (15.7″)
DryerN/A
Line Speed0.3 to 3 mpm (0.98 to 9.8 fpm)
